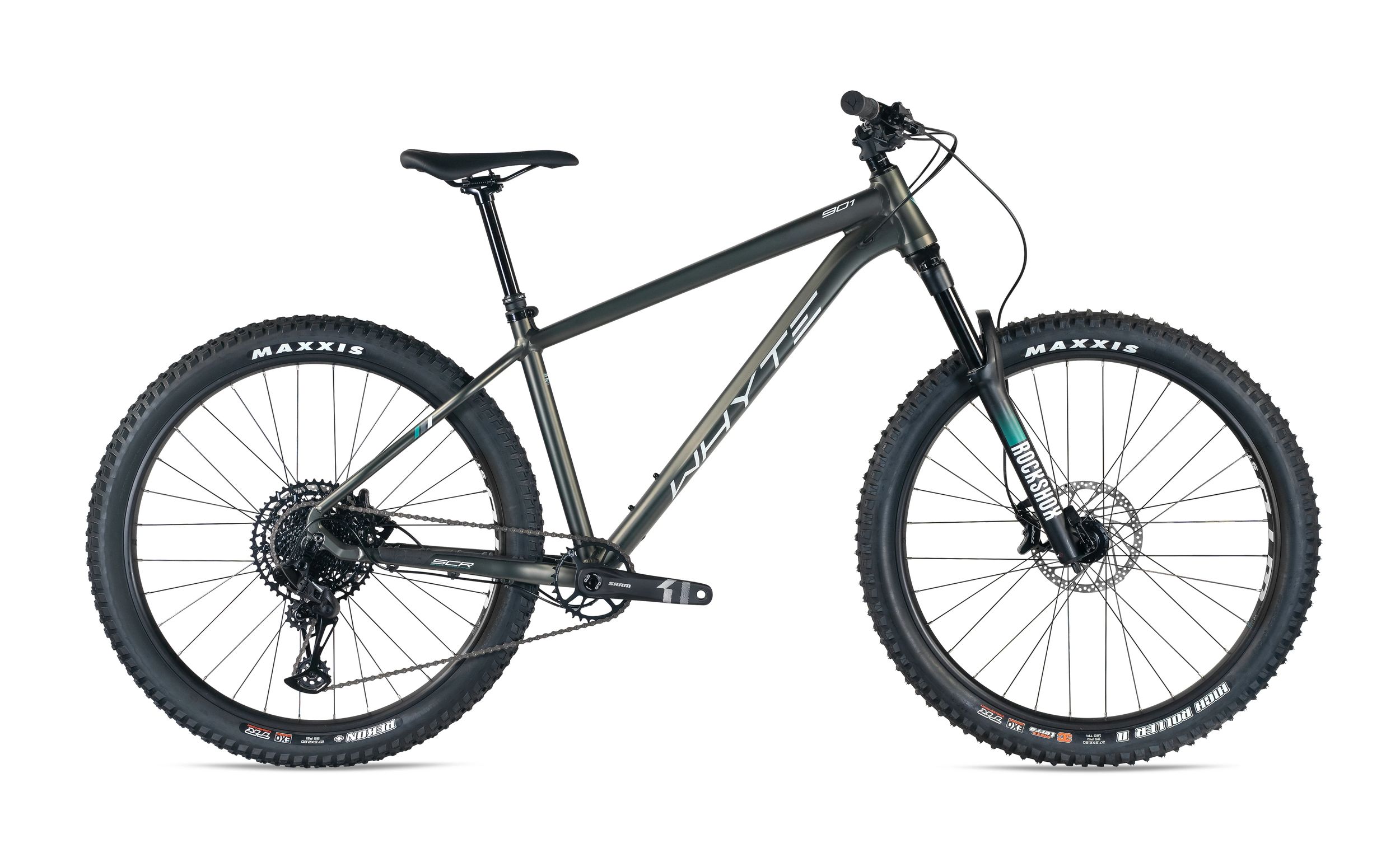

2022 Whyte 901 v4
With the 901 it's all about the geometry - it will make you feel more confident in all situations than any hardtail you've ever ridden. The latest 901 features exactly the same frame as the 10/10 award winning 905.
The latest 901 comes with high performance trail-ready specification including TRP's excellent 4 piston Slate Evo brakes for maximum stopping power and a RAGEi dropper post with an alloy South Paw remote to easily tune your saddle height on the move without having to move your hands.
The upgraded SRAM SX 12 speed Eagle drivetrain with a massive 11-50t cassette gives the rider a huge gear range to cope with whatever the trail has in store.
| Frame | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal BBX63 Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts |
| Fork | RockShox 35 Gold RL 27.5", 130mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite |
| Rear Shock | N/A |
| Headset | FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings |
| Rear Hub | Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole |
| Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole |
| Spokes | DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples |
| Rims | WTB ST i35 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole |
| Tyres | Maxxis High Roller II TR 27.5" x 2.8" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Rekon TR 27.5" x 2.8" 60TPI, EXO Sidewall Protection, Rear |
| Shift Levers | SRAM SX Eagle, MMX, 12 Speed |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM SX Eagle, 12 Speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 Speed |
| Chain | SRAM SX Eagle, 12 Speed |
| Crankset | SRAM X1 Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost 12 Speed |
| Bottom Bracket | SRAM DUB, BSA, 73mm |
| Seatpost | KS RAGEi, 30.9mm, XS 125mm Travel, S/M 150mm, L/XL 170mm Travel, KS South Paw MMX Remote Lever |
| Saddle | Whyte Custom |
| Bar | Whyte 6061 Alloy, 30mm Rise, 31.8mm, 780mm Wide |
| Stem | Whyte Gravity Stem, 35mm Extension |
| Grips | Whyte Lock-on Enduro Grip |
| Front Brake | TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc |
| Rear Brake | TRP Slate Evo, 4 Piston with Sintered Metal Pad, 180mm Disc, Internal Routing |
| Brake Levers | TRP Slate Evo |
| Pedals | None |
| Colour | Matt Moss |
